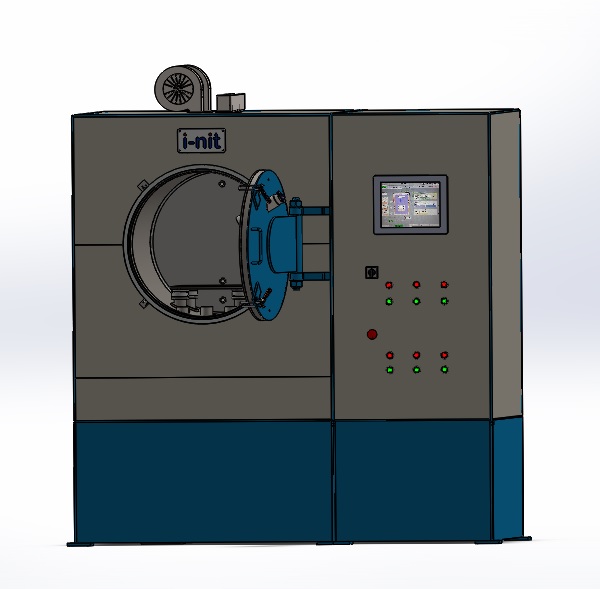

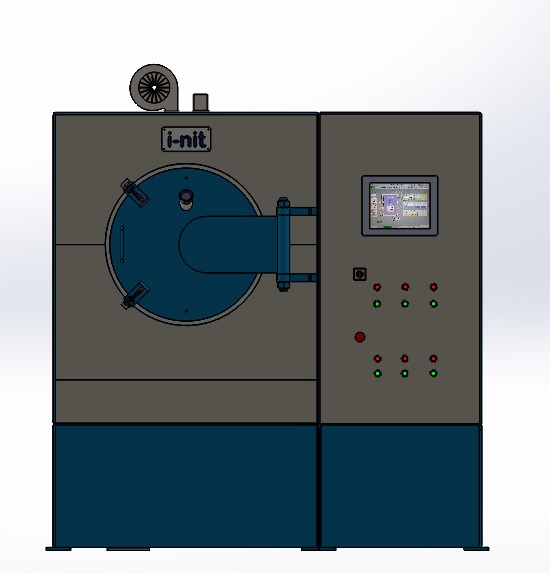

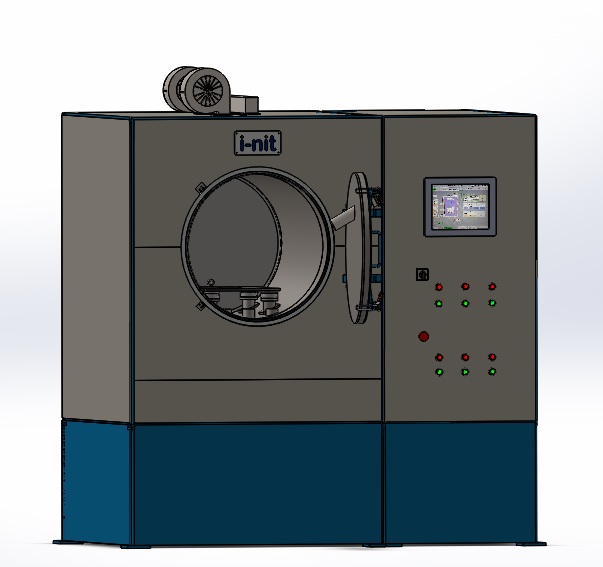

i-nit lab: Laboratory type Plasma Nitriding Furnaces
i-nit Lab is our new brand for Hot-wall Plasma Nitriding Furnaces designed for R&D centers and academic research projects.
i-nit Lab, which has all the features of Hot Wall Plasma Nitriding furnaces, is an optimal furnace for plants have a low amount of parts for nitriding but want to achieve precise and reliable results and also for the companies do not want to outsource the project and deliver their products to commercial heat treatment shops. i-nit Lab aims to increase the number of centers need to apply nitriding for laboratory scale works and R&D projects.
i-nit Lab, is a significant option for the plants have a small amount of parts for nitriding, with low investment cost, compact structure, low maintenance need, very low gas and electricity consumption.
i-nit standards such as user-friendly interface, automatic-manual-semi-automatic operating options, easy to repeat pre-programmed processes, are also available in i-nit Lab.
Useful Dimensions |
: |
G 300mm x D 400mm x Y 300mm |
Max.Loading Capacity |
: |
50 kg |
Operation Temperature |
: |
200 – 580 Co |
Temperature Uniformity |
: |
+/- 5 Co |
Heating Type |
: |
Plasma + Wire Type Heaters |
Ultimate Vacuum Level |
: |
5 x10 -2 mbar |
ProcessVacuum Level |
: |
0.8 – 5 mbar |
Cooling Type |
: |
Indirect cooling by air blowing fans |
Processes |
: |
Nitriding, Nitrocorburizing, Oxidation |
Process Gases |
: |
N2, H2, CO2 |
